Faceplate guide

Faceplates

In this Faceplate guide, you'll find our complete range of faceplates and mechanical strike plates. All are made of stainless steel and designed to deliver a sleek appearance while ensuring the electric strike is properly anchored in the door frame. Search or use the filters to identify the product best suited to your door environment. And remember, you're always welcome to contact us if you need assistance.

Relevance

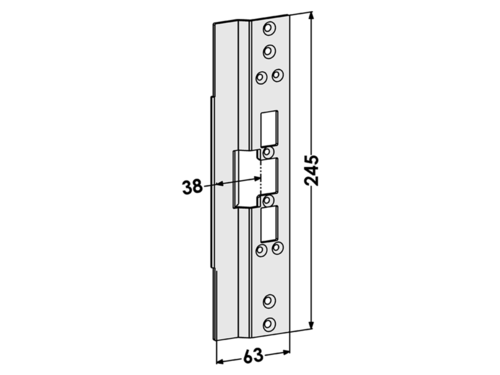

ST6680

63X245mm

Fits with: STEP 60
Flat faceplate adapted for Reynaers ML8.

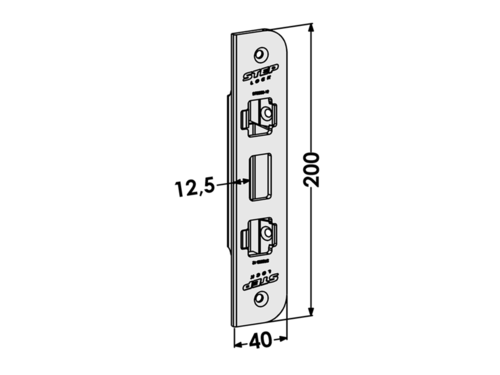

ST9009-12

40X200mm

Fits with: : STEP 550, STEP 551, STEP 552, STEP H50, STEP H51
Strike plate Fits with: : STEP 550, STEP 551, STEP 552, STEP H50, STEP H51 and replaces 1487-1. Lock class 5 according to SSF 3522.

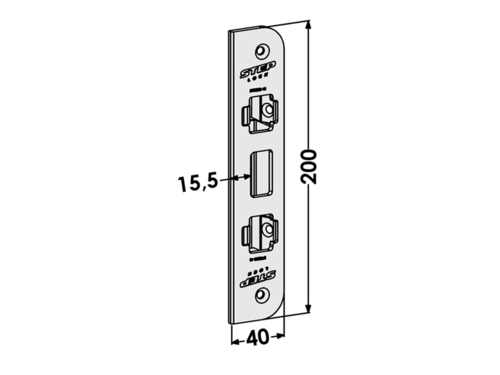

ST9009-15

40X200mm

Fits with: STEP 550, STEP 551, STEP 552, STEP H50, STEP H51
Strike plate corresponds to 1487-2. Lock class 5 according to SSF 3522.

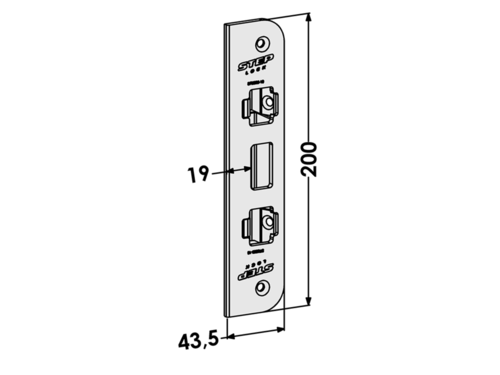

ST9009-19

43.5X200mm

Corresponds to: STEP 550, STEP 551, STEP 552, STEP H50, STEP H51
Strike plate fits STEP STEP 550, STEP 551, STEP 552, STEP H50, STEP H51 and replaces 1487-3. Lock class 5 according to SSF 3522.

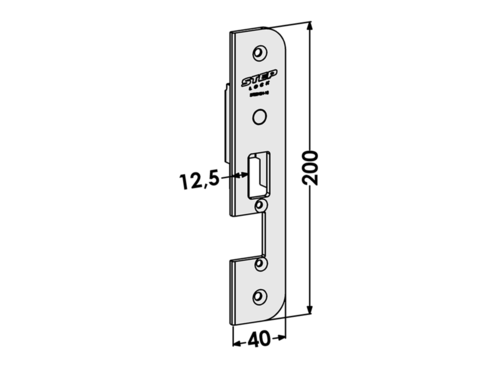

ST9013H-12

40X200mm

Fits with: STEP 550, STEP 551, STEP 48, STEP 98
Strike plate right for use with STEP 48/98 Preload or cover box ST4876. Lock class 3 according to SSF 3522.

ST9010-12

40X200mm

Fits with: STEP 550, STEP 551, STEP 552
Strike plate fits with STEP 550, STEP 551, STEP 552 and replaces 1487-1. Lock class 5+ according to SSF 3522, 5 mm plate.

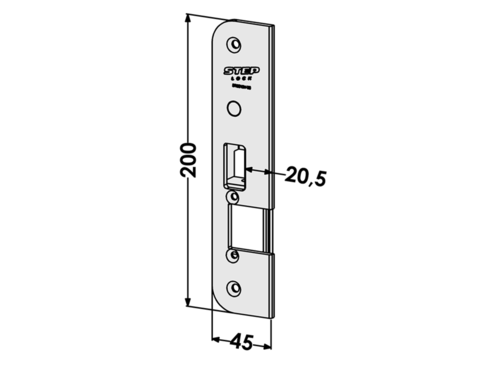

ST9013V-20

45X200mm

Fits with: STEP 550, STEP 551, STEP 48, STEP 98
Strike plate left for use with STEP 48/98 Preload or cover box ST4876. Lock class 3 according to SSF 3522.

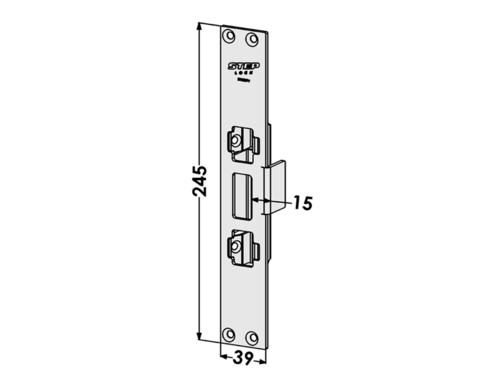

ST9097V

39X245mm

For STEP 550 motor lock, replaces existing recess corresponding to Kaba Mini Delta.

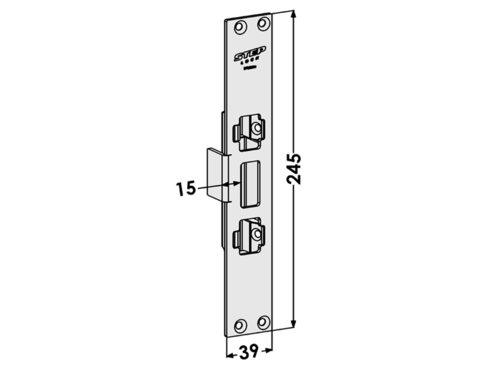

ST9097H

39X245mm

For STEP 550 motor lock, replaces existing recess corresponding to Kaba Mini Delta.

Strike plate for Solenoid handle lock ST1010-16

36X150mm

Mechanical strike plate for Solenoid handle lock corresponding to Assa 1264-2

Strike plate for Solenoid handle lock ST1010-13

36X150mm

Mechanical strike plate for Solenoid handle lock corresponding to Assa 1264-1

Unsymmetrical forend plate ST1293

Unsymmetrical forend plate for mounting of STEP 120 in doors with unsymmetrical recess.

ST1397

22X255mm

Fits with: STEP 551
Fits STEP 551 and replaces ABLOY EL595. Please note that the pin is installed in the correct direction when replacing the lock forend plate.

ST1395

22X255mm

Fits with: STEP 130, STEP 132
Fits STEP 130 and replaces ABLOY EL595.

ST1348

25X225mm

Fits with: STEP 535
Fits STEP 535 and replaces ABLOY EL648. Please note that the pin is installed in the correct direction when replacing the lock forend plate.

ST1396

22X255mm

Fits with: STEP 550, STEP 552
Fits STEP 550 and STEP 552 and replaces ABLOY EL595. Please note that the pin is installed in the correct direction when replacing the lock forend plate.
