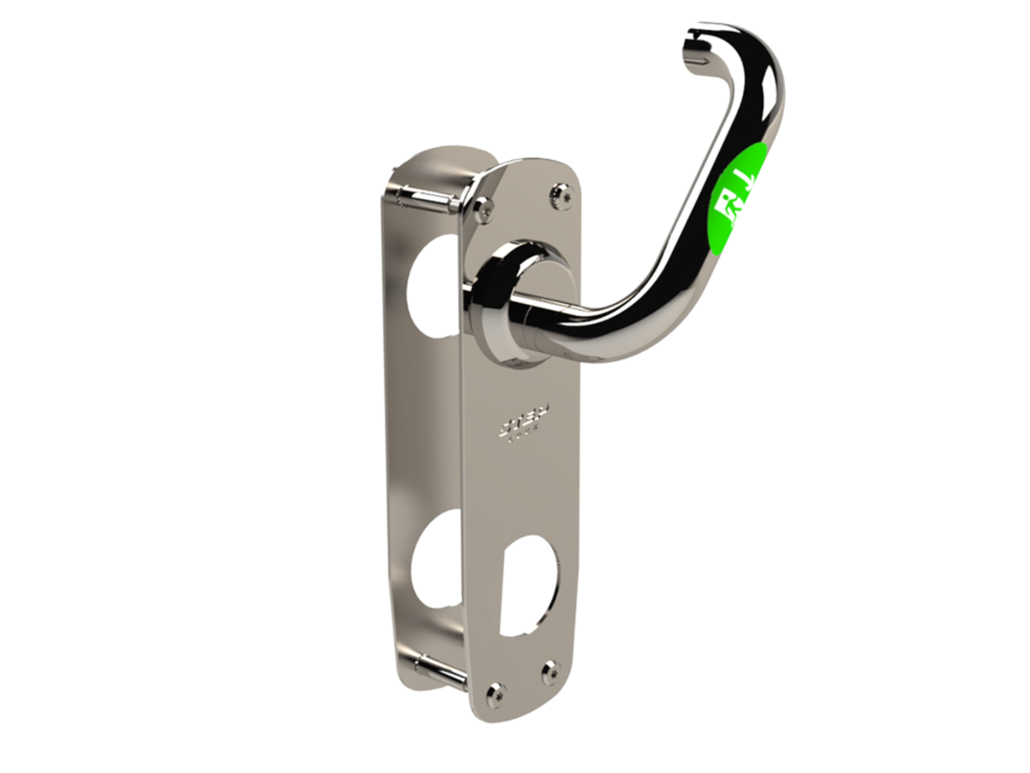

STEP Exit ST17960 Emergency device

STEP Exit ST17960 Emergency device

STEP Exit Emergency exit device ST17960

Evacuation through the single grip opening via the evacuation handle on the cylinder position on the interior. The interior side is equipped with an evacuation handle.
Fire approved together with all STEP Mechanical Emergency lock cases and STEP 130 Solenoid handle lock.
STEP Exit ST17960 is delivered in pairs.

Function on the interior side: Evacuation through the single grip opening via the evacuation handle on the cylinder position on the interior.

Function on the exterior side: Room for cylinder and handle

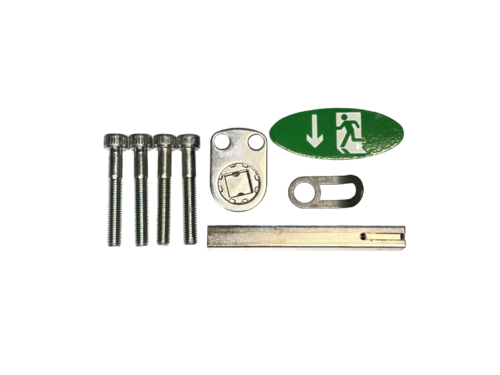

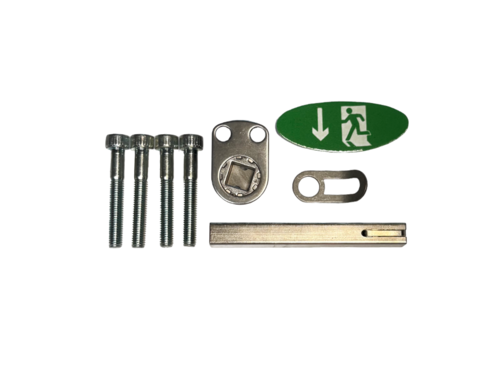

Included in the package:

  • 1pc interior
  • 1pc exterior
  • 1pc cylinder square spindle 70 mm, ST17989-70
  • 1pc Exit label with a luminous effect
  • 4pcs socket nuts
  • 4pcs screws
  • 1pc drill template
  • 1pc cylinder driver
  • 4pcs cylinder screws

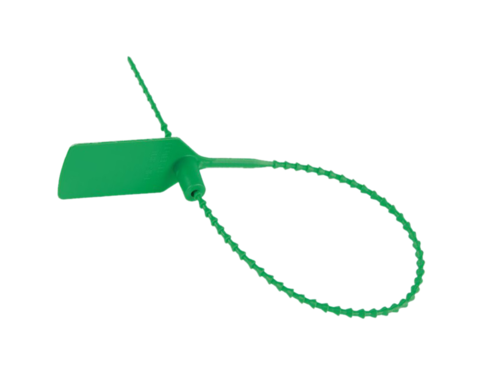

  • 1pc Exit seal
  • 1pc sealing bracket

The article numbers are structured according to the following pattern:

ST17960 = Type of escape accessories/function
-R = For right-handed doors
-V = For left-handed doors
-1 = Brushed stainless steel
-2 = Polished stainless steel
-3 = Brushed black
-5 = Brushed brass
-6 = Polished brass

Emergency device STEP Exit ST17960

Name: STEP Exit Emergency exit device ST17960

Article number: ST17960

Certified: CE-marked according to SS-EN 179:2008

Evacuation handle position: Cylinder position

Room for cylinder: Yes

Fits

Solenoid handle lock STEP 110 Solenoid handle lock STEP 112 Solenoid handle lock STEP 130 Solenoid handle lock STEP 132 Solenoid lock STEP 140 E12 - STEP E12 Emergency lock case E22 - STEP E22 Emergency lock case SE22 - STEP SE22 Emergency lock case SE36 - STEP SE36 Emergency lock case Solenoid handle locks Mechanical lock cases
No reviews yet
ID STEP 17960

STEP Exit with emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.

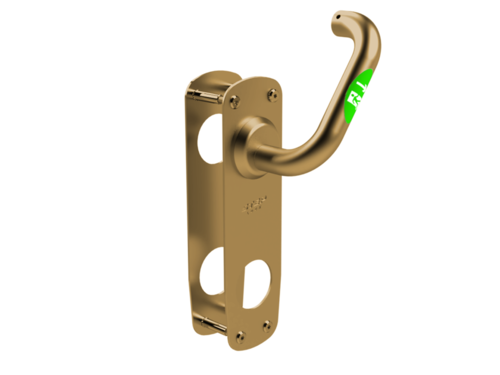

STEP Exit in brushed brass, for lefthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
ST17960-L-5 STEP Exit in brushed brass, for lefthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.

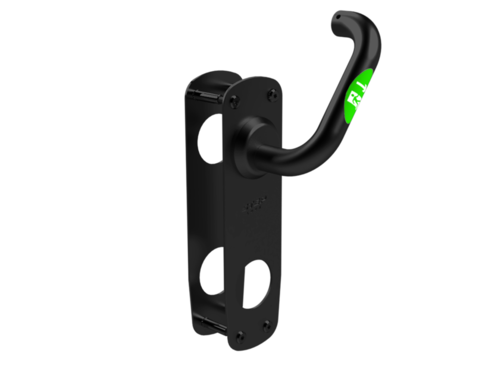

STEP Exit in brushed black, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
ST17960-R-3 STEP Exit in brushed black, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
STEP Exit in polished stainless steel, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
ST17960-R-2 STEP Exit in polished stainless steel, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.

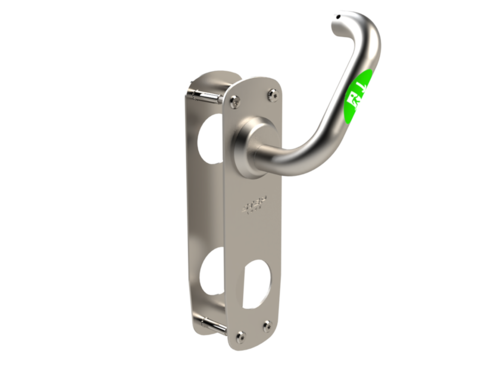

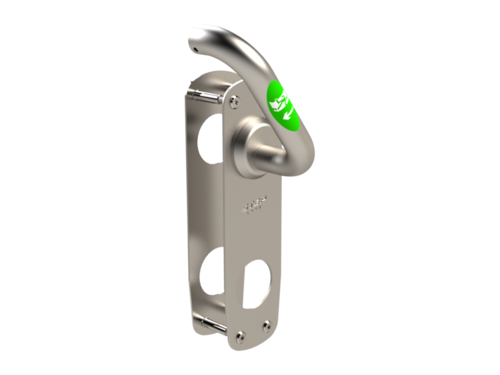

STEP Exit in brushed stainless steel, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
ST17960-R-1 STEP Exit in brushed stainless steel, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
STEP Exit in brushed brass, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
ST17960-R-5 STEP Exit in brushed brass, for righthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.

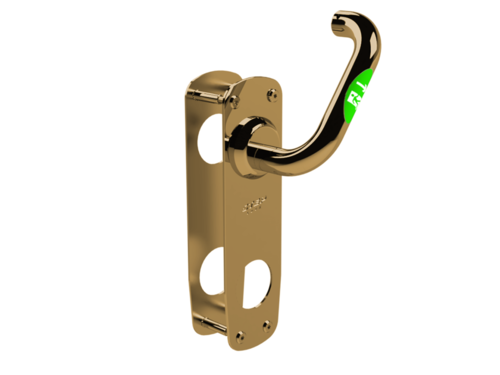

STEP Exit in polished brass, for lefthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
ST17960-L-6 STEP Exit in polished brass, for lefthanded doors. Emergency exit with the use of the interior evacuation handle on the cylinder position. Room for cylinder and lever handle on the exterior side.
(10 items)

Substitute products

STEP 110 Solenoid handle lock

STEP 110 Solenoid handle lock

Solenoid handle lock with modern bolt placement and DirectDrive. With user-friendly split function. For doors with fire and evacuation requirements.

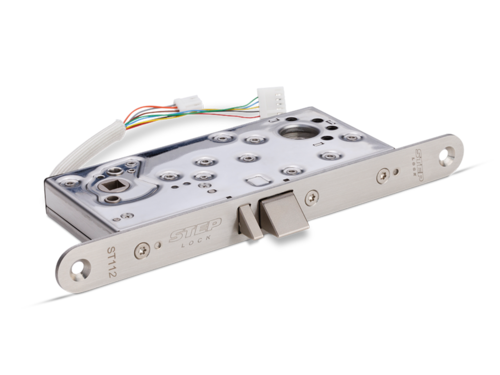

STEP 112 Solenoid handle lock

STEP 112 Solenoid handle lock

Solenoid handle lock with modern bolt placement and DirectDrive. For doors with fire and evacuation requirements.

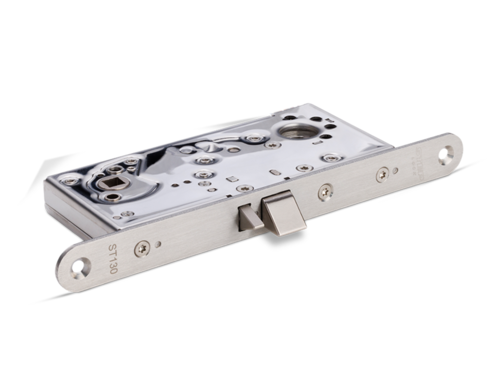

STEP 130 Solenoid handle lock

STEP 130 Solenoid handle lock

Solenoid handle lock with split function, AutomaticLatchBolt™ and DirectDrive®. Can combine fire and emergency exit requirements with door automation.

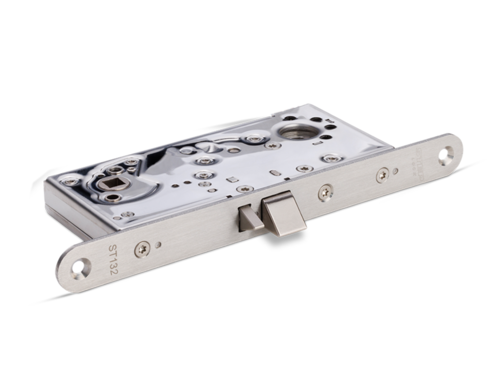

STEP 132 Solenoid handle lock

STEP 132 Solenoid handle lock

Solenoid handle lock with AutomaticLatchBolt™ and DirectDrive®. Can combine fire and emergency exit requirements with door automation.

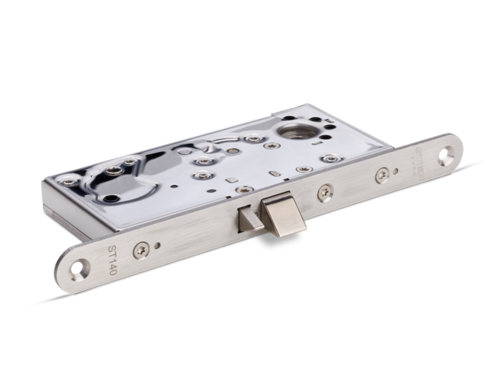

STEP 140 Solenoid lock

STEP 140 Solenoid lock

Solenoid lock with AutomaticLatchBolt™ and DirectDrive®, without handle follower. Adapted for doors with pull handle/door automation from both sides.

Accessories

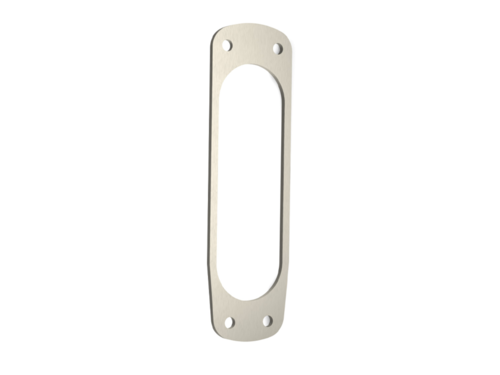

STEP Exit distance plate ST1140

STEP Exit distance plate ST1140

Stainless steel distance plate for STEP Exit Emergency exit devices.
ST1140 fits all STEP Exit Emergency exit devices that have a plate. Used as a spacer when the door leaf is too narrow.

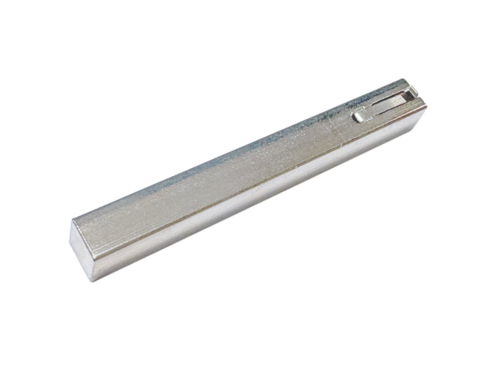

STEP Square spindle ST17989-70

STEP Square spindle ST17989-70

STEP Square spindle for STEP Exit ST17989-70 measures 8x8x70 mm.
