Electric strike STEP 28E Secure

– combines requirements for security, fire safety and evacuation with automatic door openers or pull handles.

STEP 28E Secure is a sash lock electric strike that makes it possible to combine requirements for security, fire safety and evacuation with automatic door openers or pull handles. The electric strike is used together with a sash lock, which provide good protection against burglary attempts while a door retaining function is always retained with a lever handle latch bolt.

Approved fire resistance class E/EI 60.

Electrical locking for doors with many requirements

STEP 28E Secure is used in electrical locking where door automation or pull handles are to be combined with requirements for high security and/or fire containment. The electric strike is used together with a sash lock, which provide good protection against burglary attempts while a door retaining function is always retained with a lever handle latch bolt.

Emergency evacuation function and fire safety requirements in fail secure and fail safe functions

STEP 28E Secure is often fitted with emergency evacuation locks according to EN 179 where fire safety requirements and evacuation are to be combined with automatic door openers. STEP 28E Secure also allows emergency opening via emergency open buttons at the fire cell limit.



Equipped with STEP’s Preload technology

STEP 28E Secure is equipped with STEP’s Preload technology that allows the door to unlock, even if subjected to pressures of up to 500 kg.

Wide range of faceplates

STEP 28E Secure has a wide range of stainless steel faceplates to choose from.

STEP 28E Secure Regelelslutbleck

Functional description
  • The upper rotating cam/electric strike is activated electrically via access control system, code lock or similar, and becomes unlocked (fail safe function).
  • The upper rotating cam/electric strike is activated electrically via access control system, code lock or similar, and becomes locked (fail secure function).
  • The lower rotating cam/electric strike is activated electrically via access control system, code lock or similar, and becomes unlocked.
  • The access control system detects, due to the bolt contact whether the door is closed or open.
  • The access control system detects, due to the barrier contact whether the electrik strike is locked or unlocked.
  • Choose if it should fit a right- or left-hung door, be in fail safe or fail secure function, 24 V or 12 V and what bolt width it should be adapted for.

See table of functions

Certificates
  • Durability: Grade Y acc. to EN 14846.
  • Corrosion: Grade M acc. to EN 14846.
  • Security: Grade 7 acc. to EN 14846.
  • Security electrical manipulation: Grade 3 (fail secure) Grade 1 (fail safe) acc. to EN 14846.
  • Certified in fire resistance class E/EI 60 acc. to EN 14846:2008.
Technical data
  • Microswitch unipolar changeover, max. 30 V DC, 1 A.
  • Break resistance over 15 kN (≈ 1 500 kg).
  • Ensures opening despite preload up to 5 kN (≈ 500 kg) in fail secure and fail safe functions.
  • Anti-hammer secured.
  • Including 5 m connection cable.
Article number E-nr Description
ST280-AE 7 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-AE 7 mm 10 M Electric strike STEP 28E Secure. Fail secure function 24 V DC, left. Adapted for modern bolt placement. Incl. 10 m connection cable.
ST280-AE 9 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-AE 9 mm 10 M Electric strike STEP 28E Secure. Fail secure function 24 V DC, left. Adapted for modern bolt placement. Incl. 10 m connection cable.
ST280-AE12 7 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-AE12 9 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-BE 7 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-BE 7 mm 10 M Electric strike STEP 28E Secure. Fail secure function 24 V DC, right. Adapted for modern bolt placement. Incl. 10 m connection cable.
ST280-BE 9 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-BE 9 mm 10 M Electric strike STEP 28E Secure. Fail secure function 24 V DC, right. Adapted for modern bolt placement. Incl. 10 m connection cable.
ST280-BE12 7 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-BE12 9 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST280-CE 10 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-CE 12 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-CE12 10 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-CE12 12 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-DE 10 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-DE 12 mm Electric strike STEP 28E Secure. Fail secure function 24 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-DE12 10 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST280-DE12 12 mm Electric strike STEP 28E Secure. Fail secure function 12 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-AE 7 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-AE 9 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-AE12 7 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-AE12 9 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, left. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-BE 7 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-BE 9 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-BE12 7 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-BE12 9 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, right. Adapted for modern bolt placement. Incl. 5 m connection cable.
ST281-CE 10 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-CE 12 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-CE12 10 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-CE12 12 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, left. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-DE 10 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-DE 12 mm Electric strike STEP 28E Secure. Fail safe function 24 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-DE12 10 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
ST281-DE12 12 mm Electric strike STEP 28E Secure. Fail safe function 12 V DC, right. Adapted for classic bolt placement. Incl. 5 m connection cable.
Power consumption STEP 28E Secure
Fail secure function
  • 24 V DC. 500 mA unlocked.
  • 12 V DC. 1000 mA unlocked.
Fail safe function
  • 24 V DC. 267 mA max, 126 mA locked.
  • 12 V DC. 534 mA max, 98 mA locked.

Power consumption 0 mA for rotating cam at rest (fail secure = locked, fail safe = unlocked)

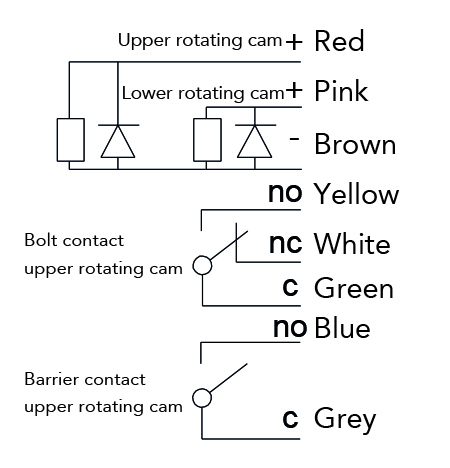

Wiring diagram STEP 28E Secure



Dimensional drawing STEP 28E Secure

Faceplates

In our faceplate guide our entire range of faceplates is collected. Enter product category and use the filters to see which product is most suitable in your door environment.

Click here to get to the faceplate guide
